Specification
|
Value
|
|
Lifecycle
|
Active
|
|
Distrib. Inventory
|
Yes
|
|
Ordering Part #
|

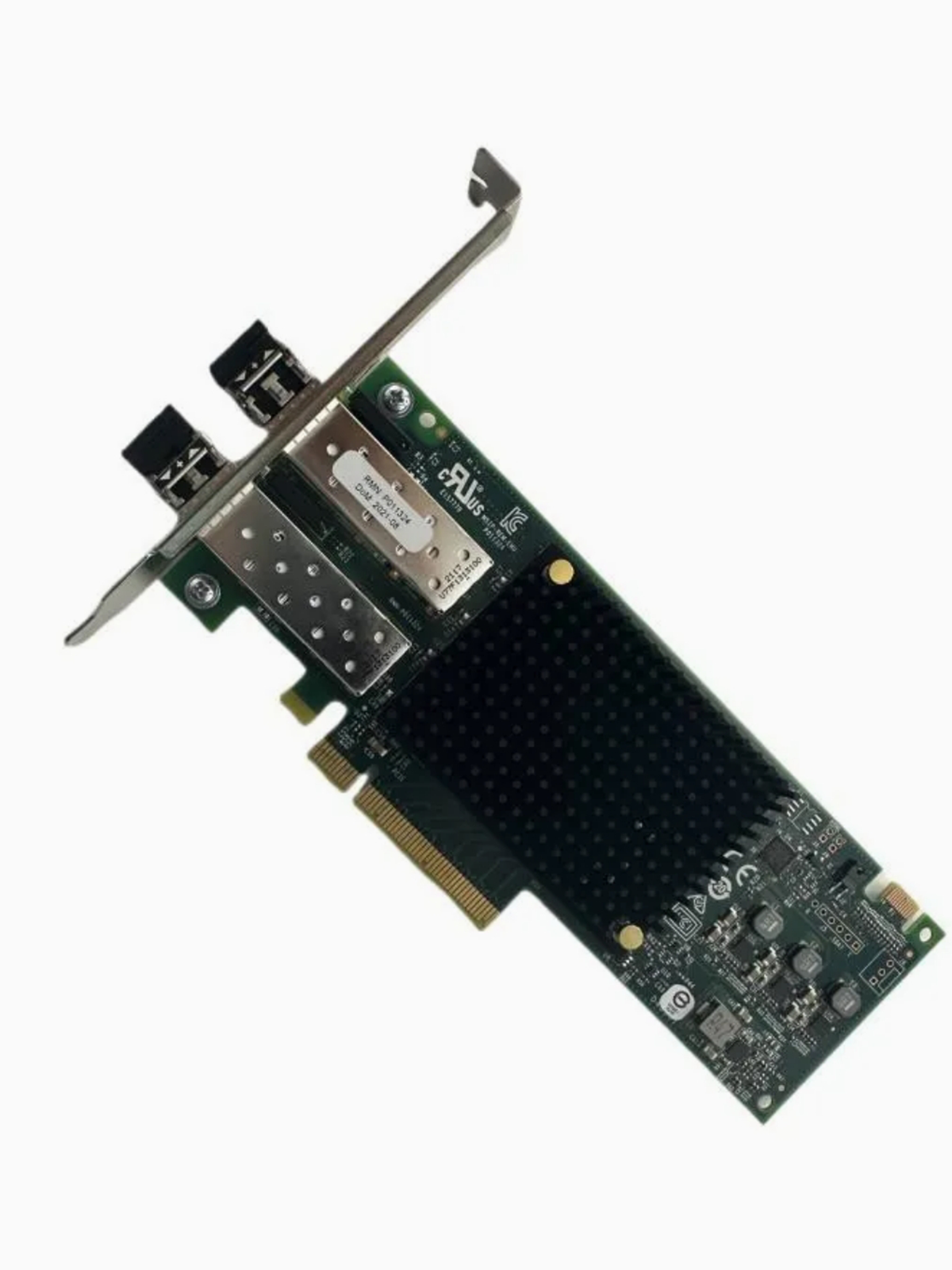

LPe32002-M2 - 2 Port 32GFC Short Wave Optical - LC SFP+
|
|
Whats in the box
|
Each box includes:Quantity 1, low-profile Host Bus Adapter, with Optic/sQuantity 1, full-height bracketQuantity 1, low-profile bracketQuantity 1, Firmware download sheet and RoHS sheet
|
|
Generation
|
Gen 6 (32/16GFC)
|
|
Physical Dimensions
|
Short, low profile PCIe card, 167.64mm x 68.91mm (6.60" x 2.71"), Standard bracket (low profile bracket ships in box)
|
|
Cable Support
|
100m at 32Gb on 50/125 μm OM4 MMF, 20m at 32Gb on 50/125 μm OM2 MMF, 70m at 32Gb on 50/125 μm OM3 MMF, Operating at 32Gb
|
|
Optical Data Rates
|
28.05 Gb/s (3200Mb/s), 14.025 Gb/s (1600Mb/s), 8.5 Gb/s (800Mb/s) (auto-detected)
|
|
Hardware Environment
|
PowerPC, SPARC, Intel x86, x64
|
|
Ports
|
2
|
|
Optics
|
Optics Short wave lasers with LC type connector optics
|
|
Host Bus Type
|
PCIe Gen3 x8
|
|
I/O Controller
|
XE501
|
|
Operating Humidity
|
5% to 95% non-condensing
|
|
Storage Temperature
|
-20° to 85°C (-4° to 185°F)
|
|
OS Support
|
Additional support is available from OEMs and partners, Oracle Solaris, SUSE® Linux Enterprise Server, VMware vSphere
|
|
Industry Standards
|
Current ANSI/IETF Standards: FC-PI-4, FC-DA, FC-DA-2, FC-GS-6, FC-LS-2, FC-PH-2, FC-PH-3, FC-PI, FC-PI-2, FC-PI-5, FCP-4, Fibre Channel class 3, Legacy ANSI/IETF standards: FC-PH, PCIe base spec 3.0, PCIe card electromechanical spec 3.0, PHP hot plug-hot swap, SBC-3, SPC-4, SSC-4
|
|
Regulatory Certifications
|
[Australia(RCM), Japan(VCCI Class A), China(China RoHS Compliant), Europe(CE Mark, EU RoHS compliant,TUV Bauart Certified), Korea(MSIP[formerly KCC/MIC]Class A), Taiwan(BSMI Class A)]
|
